PIONEER ONE
PIONEER ONE
-
Free Shipping in 4 weeks, TARIFFS COVERED
Couldn't load pickup availability
Description
-
Weight: 1.35 kg (Size S)
-
Finish: Sandblasted surface with Anodized Logo
-
Drivetrain Compatibility: Mechanical and Electronic Shifting
-
Max Tire Clearance: 700 x 32C
-
Headset: 52/52 mm Integrated (Internal)
-
Fork Material: Carbon Fiber
-
Seatpost Diameter: 27.2 mm
-
Bottom Bracket (BB): T47 x 68 mm
-
Thru-Axle: 100 x 12 mm (Front) / 142 x 12 mm (Rear)
-
Derailleur Hanger: UDH (Universal Derailleur Hanger)

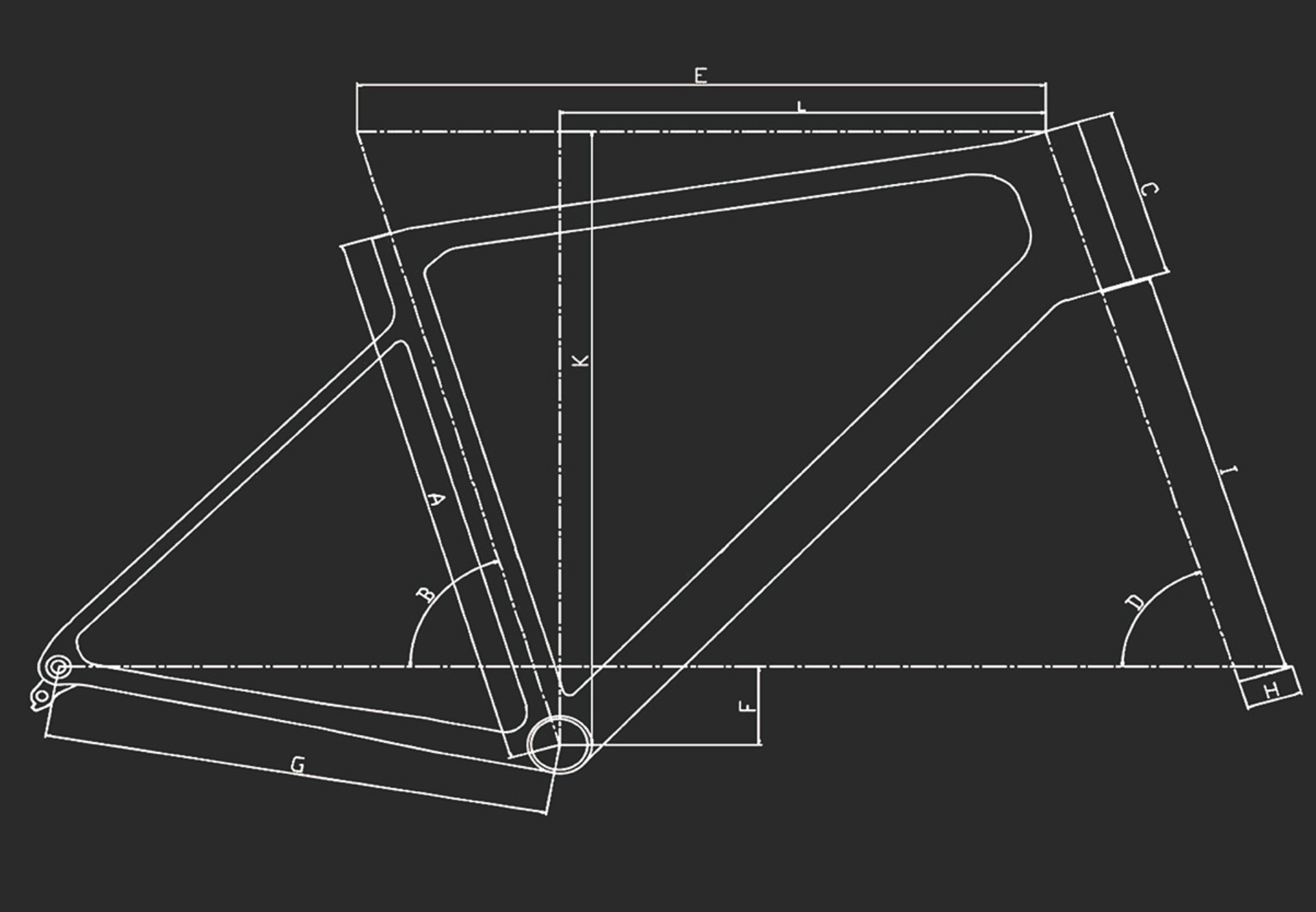

Geometry
| Frame Size | XS | S | M | L | XL |
|---|---|---|---|---|---|
| A. Seat Tube Length (mm) | 420 | 440 | 460 | 480 | 500 |
| B. Seat Tube Angle (°) | 74° | 74° | 73.5° | 73.5° | 73° |
| C. Head Tube Length (mm) | 120 | 130 | 140 | 150 | 160 |
| D. Head Tube Angle (°) | 71.5° | 72° | 72° | 72.5° | 72.5° |
| E. Effective Top Tube (mm) | 520 | 530 | 540 | 555 | 570 |
| F. Bottom Bracket Drop (mm) | 70 | 70 | 70 | 70 | 70 |
| G. Chainstay Length (mm) | 410 | 410 | 410 | 410 | 410 |
| H. Fork Offset (mm) | 45 | 45 | 45 | 45 | 45 |
| I. Fork Length (mm) | 368 | 368 | 368 | 368 | 368 |
| J. Wheelbase (mm) | 972.9 | 978.8 | 984.1 | 994.6 | 1004.5 |
| K. Stack (mm) | 519.9 | 531.1 | 540.7 | 551.9 | 561.5 |
| L. Reach (mm) | 370.9 | 377.7 | 379.5 | 391.5 | 398.3 |
| M. Standover Height (mm) | 720 | 745 | 758 | 774 | 788 |
| N. Trail (mm) | 64.6 | 61.7 | 61.7 | 58.7 | 58.7 |
01. FRAME
Full 3D-Printed Construction
Advanced additive manufacturing creates a seamless, integrated frame structure.
Strength Meets Lightweight Performance
Engineered to maximize stiffness and durability while minimizing weight.
Built for Speed and Challenge
Purpose-designed for competitive riding and high-performance endurance.
Full 3D-Printed Construction
Advanced additive manufacturing creates a seamless, integrated frame structure.
Strength Meets Lightweight Performance
Engineered to maximize stiffness and durability while minimizing weight.
Built for Speed and Challenge
Purpose-designed for competitive riding and high-performance endurance.
02. HEAD TUBE
Integrated Streamlined Head Tube
Seamlessly formed head tube with a smooth, aerodynamic profile.
Clean, Minimal Aesthetics
A sleek design that delivers a refined and modern look.
Agile and Responsive Handling
Engineered for precise control and smooth, confident maneuvering.
Integrated Streamlined Head Tube
Seamlessly formed head tube with a smooth, aerodynamic profile.
Clean, Minimal Aesthetics
A sleek design that delivers a refined and modern look.
Agile and Responsive Handling
Engineered for precise control and smooth, confident maneuvering.
03. SEAT TUBE
Optimized Seat Tube Geometry
Precisely engineered seat tube design for efficient power transfer and long-ride comfort.
Optimized Seat Tube Geometry
Precisely engineered seat tube design for efficient power transfer and long-ride comfort.
04. DROPOUT
UDH Derailleur Hanger System
Equipped with the Universal Derailleur Hanger standard for reliability and easy replacement.
Wide Drivetrain Compatibility
Compatible with a broad range of modern derailleur and shifting systems.
UDH Derailleur Hanger System
Equipped with the Universal Derailleur Hanger standard for reliability and easy replacement.
Wide Drivetrain Compatibility
Compatible with a broad range of modern derailleur and shifting systems.
05. BOTTOM BRACKET
3D-Printed T47 Bottom Bracket
High-stiffness interface for efficient power transfer.
Enhanced Frame Rigidity
Engineered for improved structural strength under load.
Smooth, Efficient Drivetrain Performance
Ensures stable and reliable system operation.
3D-Printed T47 Bottom Bracket
High-stiffness interface for efficient power transfer.
Enhanced Frame Rigidity
Engineered for improved structural strength under load.
Smooth, Efficient Drivetrain Performance
Ensures stable and reliable system operation.
06. CHAINSTAY
High-Strength Titanium with 3D-Printed Structure
Combines premium titanium with advanced printed construction for exceptional durability.
Superior Vibration Damping
Effectively absorbs road vibrations for a smoother, more comfortable ride.
Built for Endurance
Engineered for lasting durability and performance on long rides.
High-Strength Titanium with 3D-Printed Structure
Combines premium titanium with advanced printed construction for exceptional durability.
Superior Vibration Damping
Effectively absorbs road vibrations for a smoother, more comfortable ride.
Built for Endurance
Engineered for lasting durability and performance on long rides.
