DISCOVERY ONE
DISCOVERY ONE
-
Free Shipping in 4 weeks, TARIFFS COVERED
Couldn't load pickup availability
Description
-
Weight: 1.45 kg (Size S)
-
Finish: Sandblasted surface with Anodized Logo
-
Drivetrain Compatibility: Electronic Shifting (e.g., Di2, eTap)
-
Max Tire Clearance: 700 x 50C
-
Headset: 52/52mm Integrated (Internal)
-
Fork Material: Carbon Fiber
-
Seatpost Diameter: 31.6 mm
-
Bottom Bracket (BB): T47 x 85.5 mm
-
Thru-Axle: 100 x 12 mm (Front) / 142 x 12 mm (Rear)
-
Derailleur Hanger: UDH (Universal Derailleur Hanger)

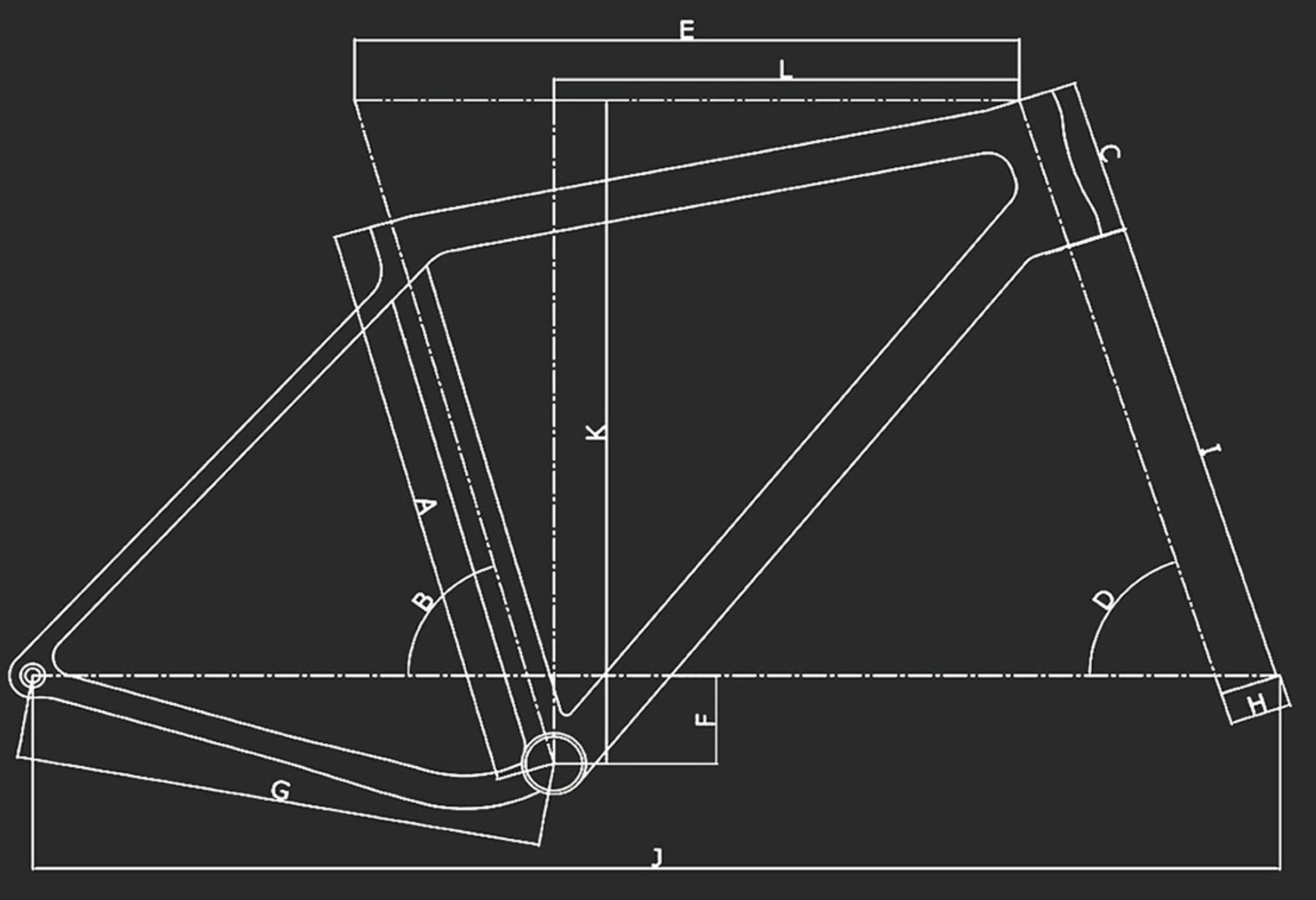

Geometry
| Frame Size | S | M | L |
|---|---|---|---|
| A. Seat Tube Length (mm) | 460 | 490 | 520 |
| B. Seat Tube Angle (°) | 74° | 73.5° | 73° |
| C. Head Tube Length (mm) | 125 | 140 | 155 |
| D. Head Tube Angle (°) | 70.5° | 71° | 71° |
| E. Effective Top Tube (mm) | 520 | 540 | 560 |
| F. Bottom Bracket Drop (mm) | 72 | 72 | 72 |
| G. Chainstay Length (mm) | 430 | 430 | 430 |
| H. Fork Offset (mm) | 50 | 50 | 50 |
| I. Fork Length (mm) | 395 | 395 | 395 |
| J. Wheelbase (mm) | 1008.3 | 1019.1 | 1034.3 |
| K. Stack (mm) | 546.4 | 562.5 | 576.7 |
| L. Reach (mm) | 363.3 | 374.1 | 383.7 |
| M. Standover Height (mm) | 778 | 800 | 820 |
| N. Trail (mm) | 70.5 | 67.5 | 67.5 |
01. FRAME
Fully 3D-Printed Monocoque Construction
Delivers a lightweight yet exceptionally strong structure.
Lightweight, High-Strength Design
Engineered for optimal strength-to-weight performance on long rides.
Multi-Mount Attachment System
Multiple mounting points for accessories, making it ideal for long-distance and endurance cycling.
Fully 3D-Printed Monocoque Construction
Delivers a lightweight yet exceptionally strong structure.
Lightweight, High-Strength Design
Engineered for optimal strength-to-weight performance on long rides.
Multi-Mount Attachment System
Multiple mounting points for accessories, making it ideal for long-distance and endurance cycling.
02. HEAD TUBE
Integrated Streamlined Head Tube Design
One-piece aerodynamic head tube construction for a clean, modern profile.
Minimalist, Clean Aesthetics
Seamless lines and a refined silhouette for a sleek, premium look.
Precise, Responsive Handling
Engineered for smooth steering and agile, confident control on every ride.
Integrated Streamlined Head Tube Design
One-piece aerodynamic head tube construction for a clean, modern profile.
Minimalist, Clean Aesthetics
Seamless lines and a refined silhouette for a sleek, premium look.
Precise, Responsive Handling
Engineered for smooth steering and agile, confident control on every ride.
03. SEAT TUBE
Optimized Seat Tube Geometry
Precisely engineered for efficient power transfer and sustained comfort on long rides.
Optimized Seat Tube Geometry
Precisely engineered for efficient power transfer and sustained comfort on long rides.
04. DROPOUT
UDH Derailleur Hanger System
Equipped with the Universal Derailleur Hanger standard for reliability and easy replacement.
Wide Drivetrain Compatibility
Compatible with a broad range of modern derailleur and shifting systems.
UDH Derailleur Hanger System
Equipped with the Universal Derailleur Hanger standard for reliability and easy replacement.
Wide Drivetrain Compatibility
Compatible with a broad range of modern derailleur and shifting systems.
05. BOTTOM BRACKET
3D-Printed T47 Bottom Bracket
High-stiffness interface for efficient power transfer.
Enhanced Frame Rigidity
Engineered for improved structural strength under load.
Smooth, Efficient Drivetrain Performance
Ensures stable and reliable system operation.
3D-Printed T47 Bottom Bracket
High-stiffness interface for efficient power transfer.
Enhanced Frame Rigidity
Engineered for improved structural strength under load.
Smooth, Efficient Drivetrain Performance
Ensures stable and reliable system operation.
06. CHAINSTAY
High-Strength Titanium with 3D-Printed Structure
Combines premium titanium with advanced printed construction for exceptional durability.
Superior Vibration Damping
Effectively absorbs road vibrations for a smoother, more comfortable ride.
Built for Endurance
Engineered for lasting durability and performance on long rides.
High-Strength Titanium with 3D-Printed Structure
Combines premium titanium with advanced printed construction for exceptional durability.
Superior Vibration Damping
Effectively absorbs road vibrations for a smoother, more comfortable ride.
Built for Endurance
Engineered for lasting durability and performance on long rides.
