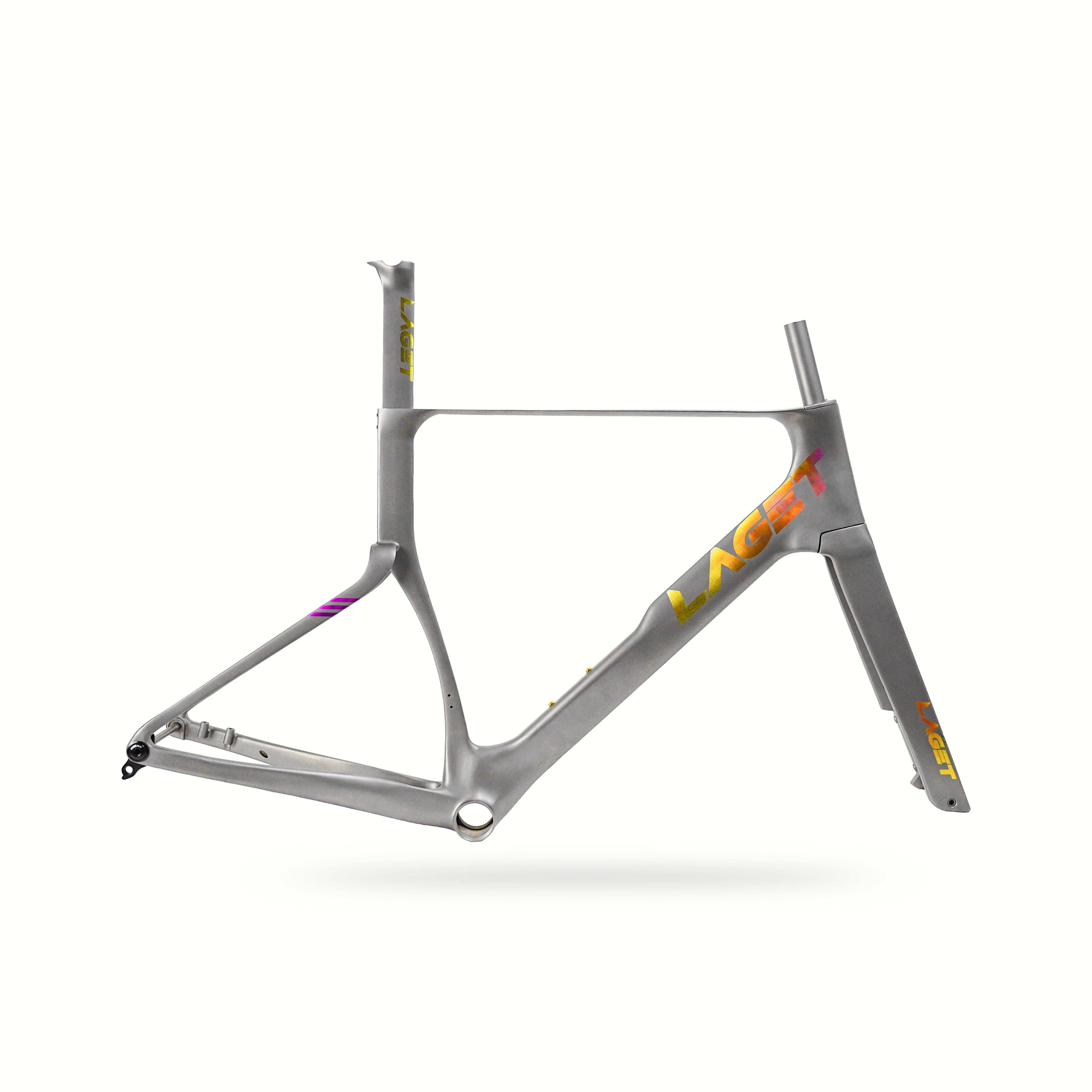

AERO ONE
AERO ONE
-
Free Shipping in 4 weeks, TARIFFS COVERED
Couldn't load pickup availability
Description
For Pre Order Sizes, Leading time is 3-4 months
-
Weight: 1.63 kg (Size M)
-
Finish: Sandblasted surface with Anodized Logo
-
Drivetrain Compatibility: Wireless Electronic Shifting Only (e.g., SRAM eTap, Shimano Di2 12s)
-
Max Tire Clearance: 700 x 30C
-
Headset: 52/52 mm Integrated (Internal)
-
Fork Material: Titanium Alloy
-
Bottom Bracket (BB): T47 x 68 mm
-
Thru-Axle: 100 x 12 mm (Front) / 142 x 12 mm (Rear)
-
Derailleur Hanger: UDH (Universal Derailleur Hanger)

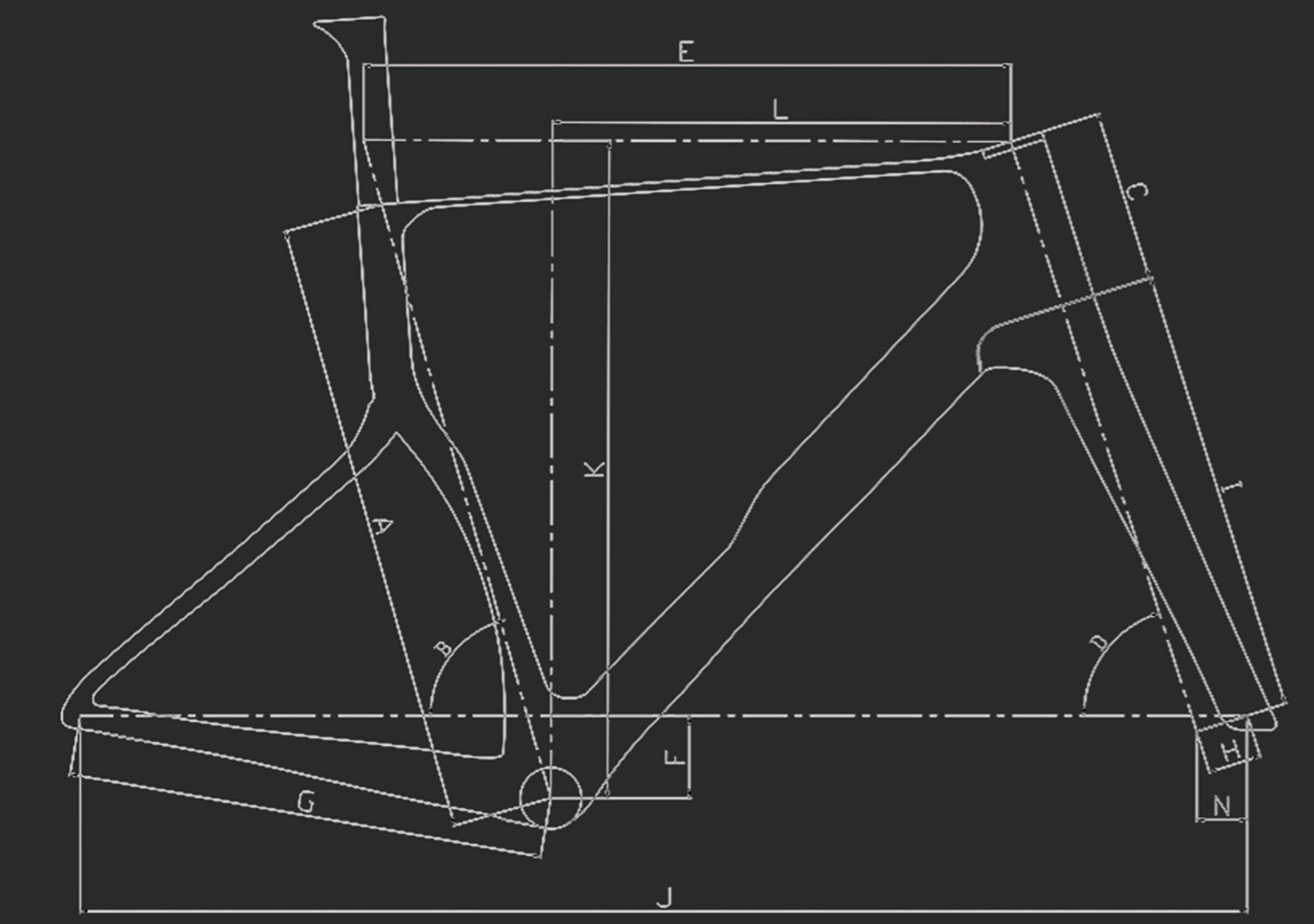

Geometry
| Frame Size | XS | S | M | L | XL |
|---|---|---|---|---|---|
| A. Seat Tube Length (mm) | 465 | 495 | 525 | 550 | 585 |
| B. Seat Tube Angle (°) | 75.1° | 74.2° | 73.6° | 73.2° | 72.8° |
| C. Head Tube Length (mm) | 120 | 140 | 160 | 180 | 200 |
| D. Head Tube Angle (°) | 71.8° | 72.1° | 72.5° | 72.8° | 72.9° |
| E. Effective Top Tube (mm) | 502.4 | 530.3 | 554.2 | 577.2 | 603.6 |
| F. Bottom Bracket Drop (mm) | 75 | 72 | 70 | 68 | 68 |
| G. Chainstay Length (mm) | 405 | 405 | 405 | 405 | 405 |
| H. Fork Offset (mm) | 50 | 48 | 45 | 43 | 43 |
| I. Fork Length (mm) | 367 | 367 | 367 | 367 | 367 |
| J. Wheelbase (mm) | 961 | 977.6 | 989.9 | 1004.8 | 1025.8 |
| K. Stack (mm) | 520.2 | 538.1 | 557.9 | 576.9 | 596.3 |
| L. Reach (mm) | 364 | 378 | 390 | 403 | 419 |
| M. Standover Height (mm) | 744.1 | 769.5 | 795.1 | 818.1 | 843.9 |
| N. Trail (mm) | 59.8 | 60.1 | 60.7 | 60.8 | 60.2 |
01. FRAME
Fully 3D-Printed Titanium Monocoque Construction
A fully integrated frame built using advanced 3D-printed titanium technology.
Strength and Lightweight Performance Balanced
Engineered to deliver exceptional structural strength while keeping weight to a minimum.
Built for Speed and Aerodynamic Performance
Purpose-designed for competitive racing and high-speed aerodynamic riding.
Fully 3D-Printed Titanium Monocoque Construction
A fully integrated frame built using advanced 3D-printed titanium technology.
Strength and Lightweight Performance Balanced
Engineered to deliver exceptional structural strength while keeping weight to a minimum.
Built for Speed and Aerodynamic Performance
Purpose-designed for competitive racing and high-speed aerodynamic riding.
02. HEAD TUBE
Fully 3D-Printed Integrated Aero Head Tube
A seamless, one-piece head tube formed through advanced 3D printing.
Optimized Aerodynamics
Streamlined shaping significantly reduces drag at speed.
Precise, Stable Handling
Engineered for confident control and responsive steering.
Fully 3D-Printed Integrated Aero Head Tube
A seamless, one-piece head tube formed through advanced 3D printing.
Optimized Aerodynamics
Streamlined shaping significantly reduces drag at speed.
Precise, Stable Handling
Engineered for confident control and responsive steering.
03. SEAT TUBE
Race-Oriented Geometry Optimization
Designed with a performance-focused geometry for aggressive riding.
Improved Pedaling Efficiency
Optimized positioning enhances power transfer with every pedal stroke.
Comfort for Long Distances
Balanced design maintains comfort and stability on extended rides.
Race-Oriented Geometry Optimization
Designed with a performance-focused geometry for aggressive riding.
Improved Pedaling Efficiency
Optimized positioning enhances power transfer with every pedal stroke.
Comfort for Long Distances
Balanced design maintains comfort and stability on extended rides.
04. DROPOUT
UDH Derailleur Hanger System
Equipped with the Universal Derailleur Hanger standard for reliability and easy replacement.
Wide Drivetrain Compatibility
Compatible with a broad range of modern derailleur and shifting systems.
UDH Derailleur Hanger System
Equipped with the Universal Derailleur Hanger standard for reliability and easy replacement.
Wide Drivetrain Compatibility
Compatible with a broad range of modern derailleur and shifting systems.
05. BOTTOM BRACKET
3D-Printed T47 Bottom Bracket
High-stiffness interface for efficient power transfer.
Enhanced Frame Rigidity
Engineered for improved structural strength under load.
Smooth, Efficient Drivetrain Performance
Ensures stable and reliable system operation.
3D-Printed T47 Bottom Bracket
High-stiffness interface for efficient power transfer.
Enhanced Frame Rigidity
Engineered for improved structural strength under load.
Smooth, Efficient Drivetrain Performance
Ensures stable and reliable system operation.
06. CHAINSTAY
High-Strength Titanium with 3D-Printed Structure
Combines premium titanium with advanced printed construction for exceptional durability.
Superior Vibration Damping
Effectively absorbs road vibrations for a smoother, more comfortable ride.
Built for Endurance
Engineered for lasting durability and performance on long rides.
High-Strength Titanium with 3D-Printed Structure
Combines premium titanium with advanced printed construction for exceptional durability.
Superior Vibration Damping
Effectively absorbs road vibrations for a smoother, more comfortable ride.
Built for Endurance
Engineered for lasting durability and performance on long rides.
